Ventilation units up to 600 m³/h

Zehnder
EVO 2

  • Intelligent Design
  • Easy Installation
  • High Performance

Enjoy air quality and comfort with the Zehnder EVO 2. Designed with advanced constant flow ventilation technology, this unit ensures consistent airflow while minimizing energy consumption. Its centrifugal fans and forward-inclined blades provide quiet operation and superior efficiency. With easy maintenance and a focus on delivering optimum air quality, the Zehnder EVO 2 is your perfect solution for sustainable and comfortable ventilation.



The Zehnder EVO 2 offers versatile performance, supporting flow rates of up to 200 m³/h. Possible to choose between HRV exchanger or ERV one to suit your specific requirements. Available with or without electric preheating, this system ensures flexibility, efficiency, and optimal indoor air quality for any space.

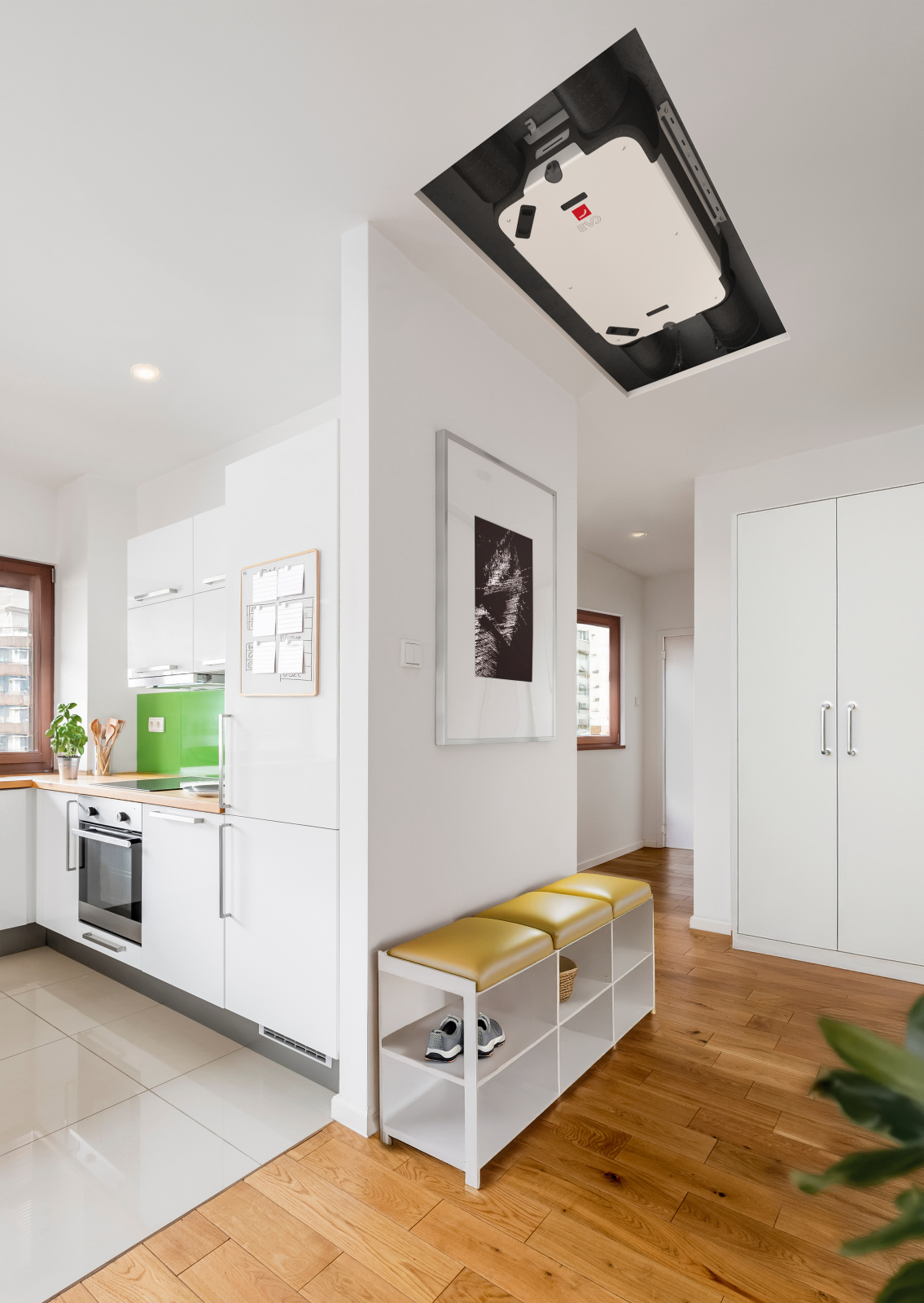

The ultra flat design makes it ideal for apartments in false ceilings or walls in new buildings and renovation projects.

Benefits

  • Intelligent Design

  • Ultra compact dimensions (L 1000mm x W 600mm x H 210 mm)

  • Appealing and minimalist design

  • Fully horizontal installation, no inclination required for condensation drain

  • Double-rotating condensate drain

  • 100% automatic by-pass

  • Silent operation: Silentblock hooks and silent fan ensure acoustic comfort

  • Optional: Built-in 1kW preheater

  • Optional: Enthalpy heat exchanger for partial humidity recovery

  • Esay Installation

  • Time savings through simplified and intuitive installation

  • Vertical or horizontal mounting

  • Turntable connections with integrated EPDM rubber bands for a better sealing

  • Possibility to install the rails on all sides of the unit due to the versatility of the Silentblock hooks.

  • One unit, many easy configurations

  • High Performance

  • Best sealing ensures maximum tightness

  • Advanced motor technology allows low energy consumption•

  • Constant airflow technology guarantees balanced flow rate and optimal comfort

  • Aerodynamic design provides better airflow without increasing internal pressure

  • Improved energy efficiency (up to 95%)

  • Different control options via remote, smart home automation (KNX

  • MODBUS), or app

  • Passivhaus Institute Certification
